Iris-M™ Macro Cell RU 5G n79 AAU
Iris-M™ Macro Cell n79 Radio Unit (RU) is a 5G coherent massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Iris-M™ array implements high-order fully digital beamforming which enables both massive MIMO 5G operation and beamforming with 3D beam steering, providing industry-leading uplink performance, throughput, and range.
Uplink &
Downlink
Integrated Antenna
+20 dBi gain integrated antenna
72 Active Antenna Elements
Dual Slant Polarization
Scalable RF
6 Active Beams/Cells @ 2T2R or
3 Active Beam/Cells @ 4T4R
TX Power
+32W Total RF Power
(+16W per polarization)
10, 20, 30, 40, 50, 60, 70, 80,
90, & 100 MHz (3GPP Rel.17)
5G LTE Bandwidths
Compliant
O-RAN
5G Band n79 (NATO Band IV)
4400 MHz - 5000 MHz
DL +1 Gbps
UL +1 Gbps
Peak Data Rates
LTE 5G NR
Dynamic TDD
Duplex Schema
1*QSP28 (100GigE)
eCPRI with SyncE option
Split 8, ORAN 7.2* (in development)
Integrated GPS for asynchronous vRAN
Power -48VDC
I/O’s & RU Interface
IP67 Design
-40°C to +50°C
Environmentals
~20”x~20”x~16”
Size
5G Products
Iris-S™ Small Cell RU 5G n79 AAU
Iris-S™ Small Cell n79 Radio Unit (RU) is a 5G coherent massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Iris-S™ array implements high-order fully digital beamforming which enables both massive MIMO 5G operation and beamforming with 3D beam steering, providing industry-leading uplink performance, throughput, and range.
Uplink &
Downlink
Integrated Antenna
+11 dBi gain integrated antenna
8 Active Antenna Elements
Dual Slant Polarization
Scalable RF
2 Active Beams/Cells @ 2T2R or
1 Active Beam/Cell @ 4T4R
TX Power
+4W Total RF Power
(+2W per polarization)
10, 20, 30, 40, 50, 60, 70, 80,
90, & 100 MHz (3GPP Rel.17)
5G LTE Bandwidths
Compliant
O-RAN
5G Band n79 (NATO Band IV)
4400 MHz - 5000 MHz
DL +1 Gbps
UL +1 Gbps
Peak Data Rates
LTE 5G NR
Dynamic TDD
Duplex Schema
1*QSP28 (100GigE)
eCPRI split 8 with SyncE option
ORAN 7.2* (in development)
Integrated GPS for asynchronous vRAN
Power 20-33VDC
I/O’s & RU Interface
IP67 Design
-40°C to +50°C
Environmentals
~7”x~7”x~11”
Size

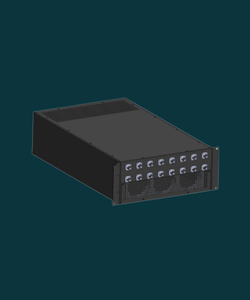

Iris-RC™ Small Cell RU 5G n79 AAU
Iris-RC™ Small Cell n79 Radio Unit (RU) is a dual RU 5G (AAU) optimized for use with radiating cables (a.k.a. “Leaky Coax”) for indoor locations and supporting the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Iris-RC™ internal array implements massive MIMO 5G operation providing industry-leading performance and throughput. The Iris-RC™ transmit power can be granularly reduced in order to limit RF spillage for sensitive locations.
Uplink &
Downlink
External Antenna
Optimized for use with radiating cables
(aka. “Leaky Coax”)
Supports Dual Slant Polarization
Scalable RF
2 Active Beams/Cells @ 2T2R or
1 Active Beam/Cell @ 4T4R
TX Power
+4W Total RF Power
(+2W per polarization)
10, 20, 30, 40, 50, 60, 70, 80,
90, & 100 MHz (3GPP Rel.17)
5G LTE Bandwidths
Compliant
O-RAN
5G Band n79 (NATO Band IV)
4400 MHz - 5000 MHz
DL +1 Gbps
UL +1 Gbps
Peak Data Rates
LTE 5G NR
Dynamic TDD
Duplex Schema
1*QSP28 (100GigE) per RU
eCPRI with SyncE option
Split 8, ORAN 7.2* (in development)
Integrated GPS for asynchronous vRAN
Power 100-240VAC, 50-60Hz
I/O’s & RU Interface
Indoor Use Only
+10°C to +35°C
Environmentals
4RU (~7” x ~19” x ~30”)
Size
Iris-M™ Macro Cell RU 5G n48/n78 & CBRS AAU
Iris-M™ Macro Cell RU 5G n48/n78 and 4G LTE CBRS Radio Unit (RU) is a massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 500 MHz of the 5G NR n48/n78 spectrum (3300 MHz through 3800 MHz) & all 150 MHz of the Citizens Broadband Radio Service (CBRS) spectrum (3550 MHz through 3700 MHz) from a single unit / SKU. The Iris-M™ Macro Cell 5G n48/n78 & CBRS array implements fully digital beamforming which enables both massive MIMO 5G operation and 3D beamforming which provides industry-leading uplink performance and throughput while providing and delivering unprecedented downlink throughput and connectivity.
Uplink &
Downlink
Integrated Antenna
+20 dBi gain integrated antenna
72 Active Antenna Elements
Dual Slant Polarization
Scalable RF
6 Active Beams/Cells @ 2T2R or
3 Active Beam/Cells @ 4T4R
TX Power
+32W Total RF Power
(+16W per polarization)
10, 20, 30, 40, 50, 60, 70, 80,
90, & 100 MHz (3GPP Rel.17)
5G LTE Bandwidths
Compliant
O-RAN
5G Band n48/n78 & 4G LTE CBRS
3300 MHz - 3800 MHz
DL +1 Gbps
UL +1 Gbps
Peak Data Rates
LTE 5G NR
Dynamic TDD
Duplex Schema
1*QSP28 (100GigE)
eCPRI with SyncE option
Split 8, ORAN 7.2* (in development)
Integrated GPS for asynchronous vRAN
Power -48VDC
I/O’s & RU Interface
IP67 Design
-40°C to +50°C
Environmentals
~20”x~20”x~16”
Size

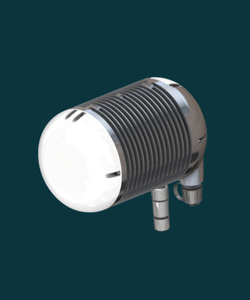

Iris-S™ Small Cell RU 5G n48/n78 & CBRS AAU
Iris-S™ Small Cell RU 5G n48/n78 and 4G LTE CBRS Radio Unit (RU) is a massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 500 MHz of the 5G NR n48/n78 spectrum (3300 MHz through 3800 MHz) & all 150 MHz of the Citizens Broadband Radio Service (CBRS) spectrum (3550 MHz through 3700 MHz) from a single unit / SKU. The Iris-S™ Small Cell 5G n48/n78 & CBRS array implements fully digital beamforming which enables both massive MIMO 5G operation and 3D beamforming which provides industry-leading uplink performance and throughput while providing and delivering unprecedented downlink throughput and connectivity.
Uplink &
Downlink
Integrated Antenna
+11 dBi gain integrated antenna
8 Active Antenna Elements
Dual Slant Polarization
Scalable RF
2 Active Beams/Cells @ 2T2R or
1 Active Beam/Cell @ 4T4R
TX Power
+4W Total RF Power
(+2W per polarization)
10, 20, 30, 40, 50, 60, 70, 80,
90, & 100 MHz (3GPP Rel.17)
5G LTE Bandwidths
Compliant
O-RAN
5G Band n79 (NATO Band IV)
4400 MHz - 5000 MHz
DL +1 Gbps
UL +1 Gbps
Peak Data Rates
LTE 5G NR
Dynamic TDD
Duplex Schema
1*QSP28 (100GigE)
eCPRI split 8 with SyncE option
ORAN 7.2* (in development)
Integrated GPS for asynchronous vRAN
Power 20-33VDC
I/O’s & RU Interface
IP67 Design
-40°C to +50°C
Environmentals
~7”x~7”x~11”
Size
Iris-M™ Macro Cell RU 5G n41 AAU
Iris-M™ Macro 5G n41 Radio Unit (RU) is a massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 194 MHz of the 5G NR n41 spectrum (2496 MHz through 2690 MHz) from a single unit / SKU. The Iris-M™ Macro Cell 5G n41 array implements fully digital beamforming which enables both massive MIMO 5G operation and 3D beamforming which provides industry-leading uplink performance and throughput while providing and delivering unprecedented downlink throughput and connectivity.
Uplink &
Downlink
Integrated Antenna
+20 dBi gain integrated antenna
72 Active Antenna Elements
Dual Slant Polarization
Scalable RF
6 Active Beams/Cells @ 2T2R or
3 Active Beam/Cells @ 4T4R
TX Power
+32W Total RF Power
(+16W per polarization)
10, 20, 30, 40, 50, 60, 70, 80,
90, & 100 MHz (3GPP Rel.17)
5G LTE Bandwidths
Compliant
O-RAN
5G Band n41
2496 MHz - 2690 MHz
DL +1 Gbps
UL +1 Gbps
Peak Data Rates
LTE 5G NR
Dynamic TDD
Duplex Schema
1*QSP28 (100GigE)
eCPRI with SyncE option
Split 8, ORAN 7.2* (in development)
Integrated GPS for asynchronous vRAN
Power -48VDC
I/O’s & RU Interface
IP67 Design
-40°C to +50°C
Environmentals
~36”x~36”x~16”
Size
Hyperion CU/DU
The Hyperion CD/DU leveraging vRAN Technology is capable of scaling on edge virtualized platforms and providing the CU/DU functions. Already deployed by Tier1 commercial vendors, the Hyperion CU/DU offers a large set of the 5G NR specifications. Multiple Hyperion CU/DU can be orchestrated by the Hyperion RIC. The Hyperion RIC is a specialized mission critical RAN controller with active interference detection and mitigation using multidimensional space-frequency optimization to maintain optimal links and traffic flow.
Scalable RF
RU I/O’s
1*QSP28 (100GigE)
eCPRI with SyncE
Split 8, ORAN 7.2* (in development)
Power
100-240VAC, 50-60Hz (Redundant & VDC Options Available)
10, 20, 30, 40, 50, 60, 70, 80,
90, & 100 MHz (3GPP Rel.17)
5G LTE Bandwidths
Compliant
O-RAN
Supports beamforming and active beam steering
DL +2 Gbps
UL +2 Gbps
Peak Data Rates
2 RJ45 @ 10GbE
(SFP+ Option Available)
Network I/O’s
Dedicated IPMI
Remote Mgmt
Operation temperature:
10°C ~ 35°C*
Non operation temperature:
-40°C ~ 70°C
(Extended Temperature Options Available)
Environmentals
1U Rackmount
Size
Helios 5G Core SA
The Helios 5G Core SA (Stand-Alone) network software is a unique full software 5G solution capable of operating as a standalone system or as an integrated component in a larger network deployment. Focused on 5G SA mode, the 5G Core, EPC, eMBMS gateway and IMS server run on generic x86 hardware, natively ready for virtualized environments.
Power
100-240VAC, 50-60Hz (Redundant & VDC Options Available)
2 RJ45 @ 10GbE
(SFP+ Option Available)
Network I/O’s
Dedicated IPMI
Remote Mgmt
Operation temperature:
10°C ~ 35°C*
Non operation temperature:
-40°C ~ 70°C
(Extended Temperature Options Available)
Environmentals
1U Rackmount
Size
Narthex FIPS Security Suite for 5G
The Narthex Security Suite (FIPS 140-2 AES 256, FIPS 140-3 in progress) supports multiple secure Layer-2 or Layer-3 networks over the 5G network. Each Secure Network hosts a Security Termination Point, attached to the P/SGW on the Core Network side and connected to FIPS security clients embedded in the Galerus UEs. The Layer-2 approach drastically reduces deployment complexity for the users of the private 5G domains, enabling scalable standard networking solutions, and hiding the complexity of the 5G core network. The Narthex FIPS Security Suite features strong FIPS 140-2 AES 256 (FIPS 140-3 in progress) end-to-end encryption, multi-factor authentication, secure over the air rekeying, LAN device identification, and an easy-to-use web-interface.
Encryption
Management
Manageable via modern web-interface and API's
Power
100-240VAC, 50-60Hz (Redundant & VDC Options Available)
Multi-Domain / Multi-Tenant capable enabling hosting multiple secure private networks across a shared 5G network
Multi-Domain / Multi-Tenant
Robust Multi-Factor Authentication (MFA)
Authentication
AES 256 end-to-end encryption
FIPS 140-2
(FIPS 140-3 in development)
Scalable to 1000’s of clients per domain / tenant
Scalable
2 RJ45 @ 10GbE
(SFP+ Option Available)
Network I/O’s
Dedicated IPMI
Remote Mgmt
Operation temperature:
10°C ~ 35°C*
Non operation temperature:
-40°C ~ 70°C
(Extended Temperature Options Available)
Environmentals
1U Rackmount
Size

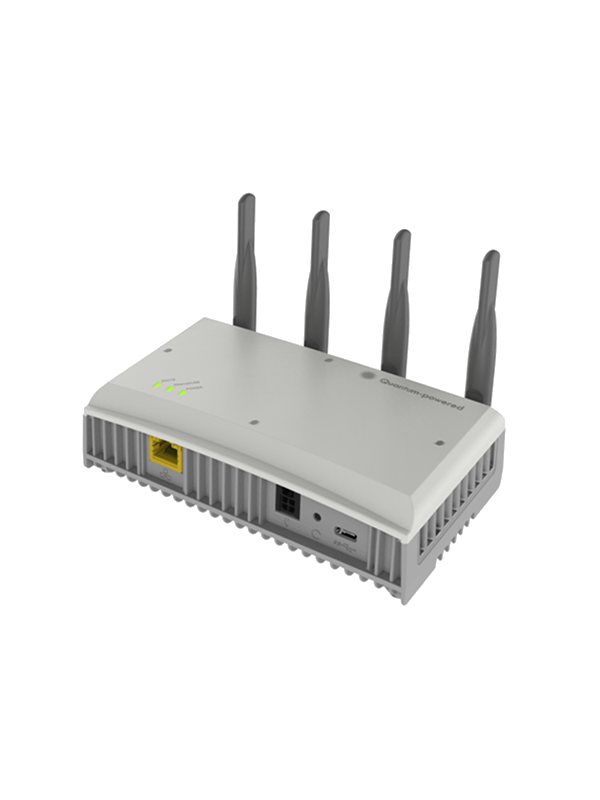

Galerus UE Omni n79 Optimized
The Galerus 5G n79 User Equipment (UE) is a 5G radio based wireless router using the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Galerus 5G n79 User equipment (UE) utilizes high-order fully digital beamforming which enables both 5G massive MIMO cooperation and beamforming with 2D beam steering, providing industry-leading uplink performance and throughput while providing and delivering unprecedented downlink throughput and connectivity. The Galerus 5G n79 User equipment (UE) is a 2T4R MIMO endpoint with integrated GPS/GNSS receiver.
Uplink & Downlink
Duplex Schema
5G NR Dynamic TDD
Power
12 VDC
2T4R MIMO
Scalable RF
40, 50, 60, 70, 80, 90, & 100 MHz (3GPP Rel.16)
5G LTE Bandwidths
4400 MHz - 5000 MHz
DL +1 Gbps
UL +1 Gbps
Peak Data Rates
100/1/2.5/5 Gbps Base-T RJ-45
USB 3.1 Gen2 10 Gbps Type C
Interfaces
-30°C to +75°C
Extended Temp
~670 grams
Weight
150mm x 88mm x 39mm
Size

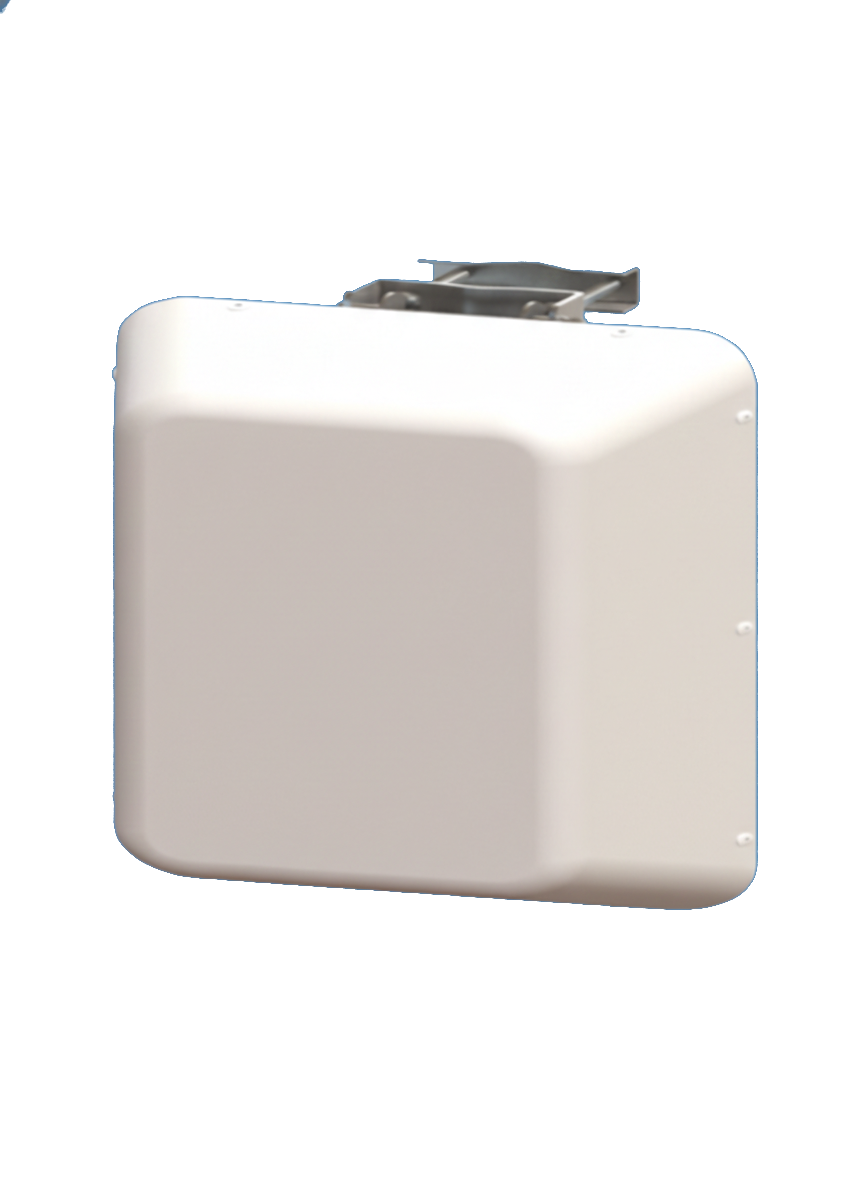

Galerus UE Panel n79 Optimized
The Galerus 5G n79 User Equipment (UE) is a 5G radio based wireless router using the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Galerus 5G n79 User equipment (UE) utilizes high-order fully digital beamforming which enables both 5G massive MIMO cooperation and beamforming with 2D beam steering, providing industry-leading uplink performance and throughput while providing and delivering unprecedented downlink throughput and connectivity. The Galerus 5G n79 User equipment (UE) is a 2T4R MIMO endpoint with integrated GPS/GNSS receiver.
Uplink & Downlink
Duplex Schema
5G NR Dynamic TDD
Power
12 VDC or PoE
2T4R MIMO with integrated high gain sector antenna which increases range and throughput while reducing uplink intercell interference
Scalable RF
40, 50, 60, 70, 80, 90, & 100 MHz (3GPP Rel.16)
5G LTE Bandwidths
4400 MHz - 5000 MHz
DL +1 Gbps
UL +1 Gbps
Peak Data Rates
100/1/2.5/5 Gbps Base-T RJ-45
USB 3.1 Gen2 10 Gbps Type C
Interfaces
-30°C to +75°C
Extended Temp
~950 grams
Weight
150mm x 150mm x 75mm
Size
Bastion RRH
Iris-M™ Macro Cell n79 Radio Unit (RU) is a 5G coherent massive MIMO 3D steerable active array unit (AAU) leveraging Abside’s RF-Retina™ technology and supporting the 5G waveform across all 600 MHz of the 5G NR n79 spectrum (4400 MHz through 5000 MHz) from a single unit / SKU. The Iris-M™ array implements high-order fully digital beamforming which enables both massive MIMO 5G operation and beamforming with 3D beam steering, providing industry-leading uplink performance, throughput, and range.
Uplink &
Downlink
Integrated Antenna
+20 dBi gain integrated antenna
72 Active Antenna Elements
Dual Slant Polarization
Scalable RF
6 Active Beams/Cells @ 2T2R or
3 Active Beam/Cell @ 4T4R
TX Power
+32W Total RF Power
(+16W per polarization)
10, 20, 30, 40, 50, 60, 70, 80,
90, & 100 MHz (3GPP Rel.17)
5G LTE Bandwidths
Compliant
O-RAN
5G Band n79 (NATO Band IV)
4400 MHz - 5000 MHz
DL +1 Gbps
UL +1 Gbps
Peak Data Rates
LTE 5G NR
Dynamic TDD
Duplex Schema
1*QSP28 (100GigE)
eCPRI with SyncE option
Split 8, ORAN 7.2* (in development)
Integrated GPS for asynchronous vRAN
Power -48VDC
I/O’s & RU Interface
IP67 Design
-40°C to +50°C
Environmentals
~20x~20”x~16”
Size
